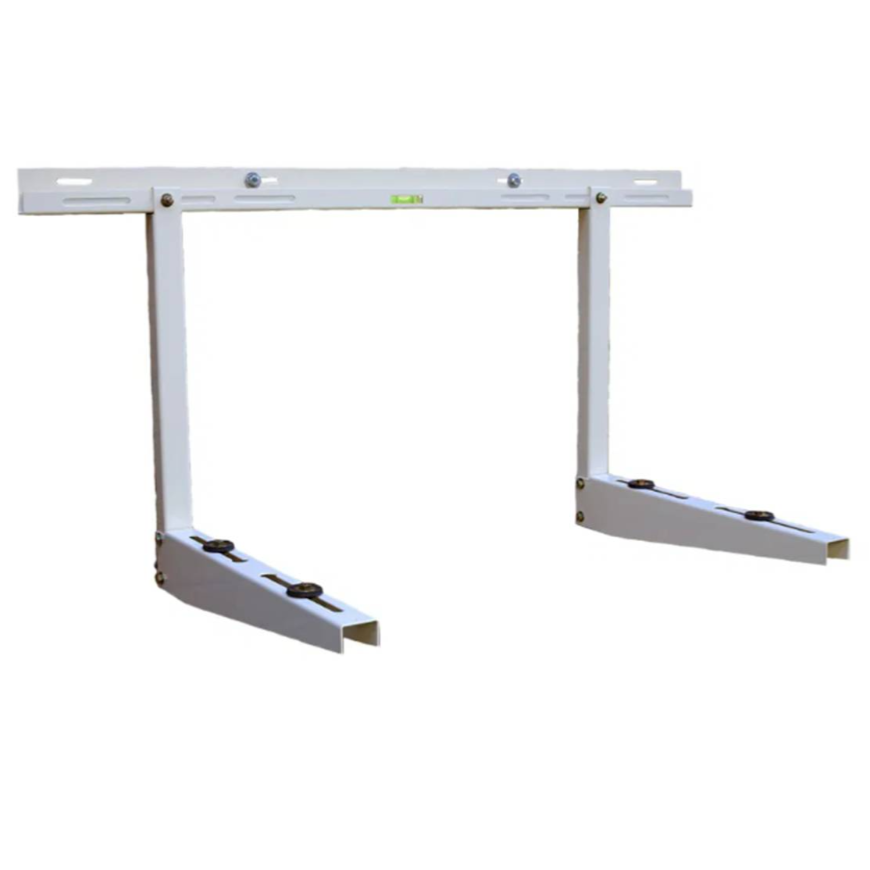

Diversitech Type 2 Bracket XL Support arm 660mm 250kg (3 arms) CBR2-XL-3A-BL

Diversitech Type 2 Bracket XL Support arm 660mm 250kg (3 arms) CBR2-XL-3A-BL

(Code: CBR2-XL-3A-BL)
Diversitech
DiversiTech International offer a range of flat packed brackets, the Type 1 bracket has uprights and mounts directly onto the wall.
£ 138.27
0g
-+
Add to cart
@import url(https://fonts.googleapis.com/css?family=Lato:100,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }
PAYPAL CREDIT
Finance options available
EXPRESS DELIVERY*
Order before 1pm
FREE DELIVERY
On orders over £10*
RATED EXCELLENT
Read reviews

  1. Description of Diversitech Type 2 Bracket XL Support arm 660mm 250kg (3 arms) CBR2-XL-3A-BL:



    DiversiTech International offer a range of flat packed brackets.

    • Type 1 brackets have uprights and mounts directly onto the wall.
    • Type 2 brackets come with a crossbar so that the uprights can be spaced exactly as required. The integral spirit level makes installation easier.
    • Type 3 brackets have a unique interlocking mechanism enabling the arms to be joined in a matter of seconds.

    For improved corrosion resistance all metal receives a 100% zinc plating, followed by a hard ED coating, before being finished with an external grade polyester textured powder coating in RAL 7032. For lighter condensing units we offer an economy version. This incorporates the traditional crossbar style for easy spacing of the support arms. We also offer a range of stainless steel brackets, which are recommended for coastal locations exposed to sea salt or in corrosive environments.

    Content:
    • Crossbar with spirit level
    • 2/3 x support arms
    • 2/3 x uprights
    • Fixings
    • Installation instructions

    Weight: 21.5kg
    Crossbar: 1040mm
    Upright: 550mm
    Support arm: 660mm
    Max load: 500kg
    Safe working load: 250kg

  2. Features of Diversitech Type 2 Bracket XL Support arm 660mm 250kg (3 arms) CBR2-XL-3A-BL:

    ✔ Integral spirit level for easier, correct installation
    ✔ Uprights mount anywhere on the crossbar which enables the arm span to be adjusted easily
    ✔ Adjustable wall spacers to level the arms
    ✔ Safe working load up to 250kg
    ✔ Suitable to match most brands of condensing units and domestic air source heat pumps
    ✔ Extra long arms (up to 660mm available for larger condensing units)
    ✔ Textured finish in (RAL 7032)

  3.
  4. To find out more details about the product. Have a look at the following product spreadsheet.
