Geberit Alpha 82cmH Concealed Cistern 109.002.00.1
Geberit Alpha 82cmH Concealed Cistern 109.002.00.1Geberit Alpha 82cmH Concealed Cistern 109.002.00.1Geberit Alpha 82cmH Concealed Cistern 109.002.00.1

Geberit Alpha 82cmH Concealed Cistern 109.002.00.1

(Code: 109.002.00.1)
OUT OF STOCK
Geberit
Designed to maximise bathroom space its dual top or front flush capability makes it an excellent choice for multiple bathroom layouts, there are no borders anymore to your creativity in bathroom design and the implementation of your ideas.
£ 92.45
3234g
@import url(https://fonts.googleapis.com/css?family=Lato:100,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }
PAYPAL CREDIT
Finance options available
EXPRESS DELIVERY*
Order before 1pm
FREE DELIVERY
On orders over £10*
RATED EXCELLENT
Read reviews

  1. Description of Geberit Alpha 82cmH Concealed Cistern 109.002.00.1:

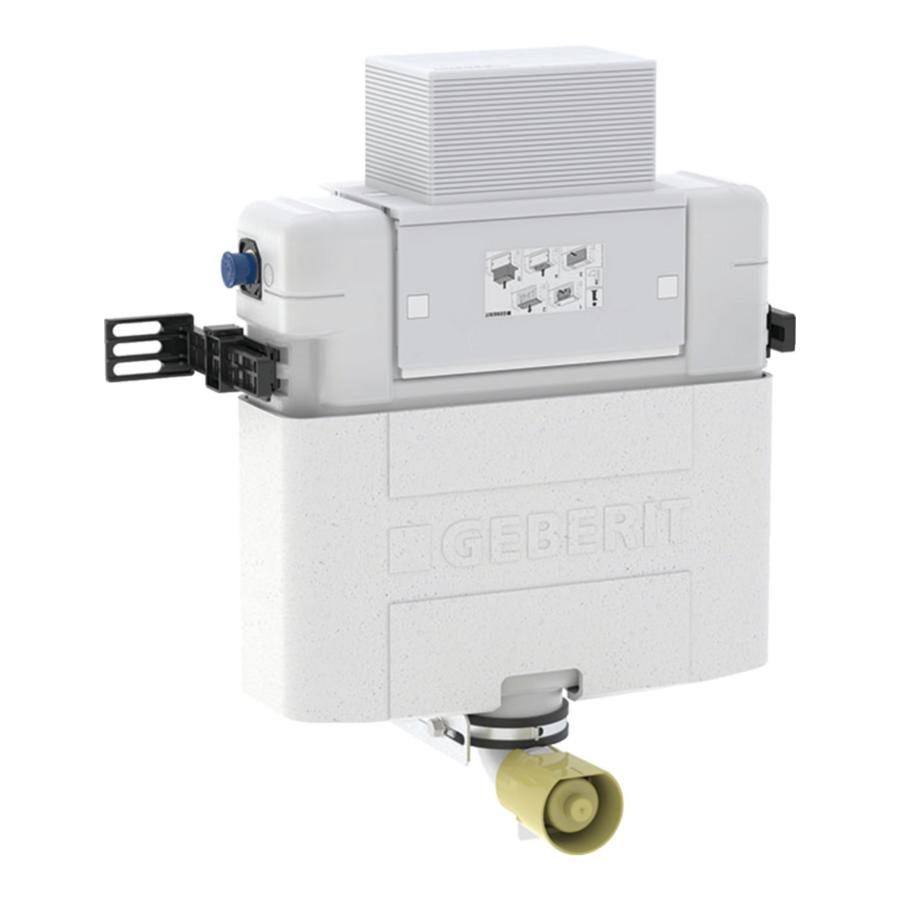

    This Geberit Alpha Cistern with an installation height of 82cm high provides an innovative concealed solution for floor-standing back-to-wall WCs in small spaces opening up opportunities when it comes to the design of your bathroom.

    Designed to maximise bathroom space its dual top or front flush capability makes it an excellent choice for multiple bathroom layouts, there are no borders anymore to your creativity in bathroom design and the implementation of your ideas.

    Whether you're upgrading your ensuite, optimizing a small space, or installing a back-to-wall WC in a challenging area (under a window, stairs, or roof pitch), this unit delivers flexibility, reliability, and efficiency.

    Key Features & Benefits:
    • Space-Saving: Depth of 12cm & installation height of 82cm, making it ideal for compact bathrooms and ensuites
    • Dual Flush System – Designed for efficient water usage, offering dual flush functionality via top or front actuation
    • Leakproof Design: The cistern is blow-molded in a single piece to prevent leaks, ensuring reliability
    • Compatibility: Works with Geberit pneumatic flush buttons, making it versatile for various bathroom aesthetics and environments

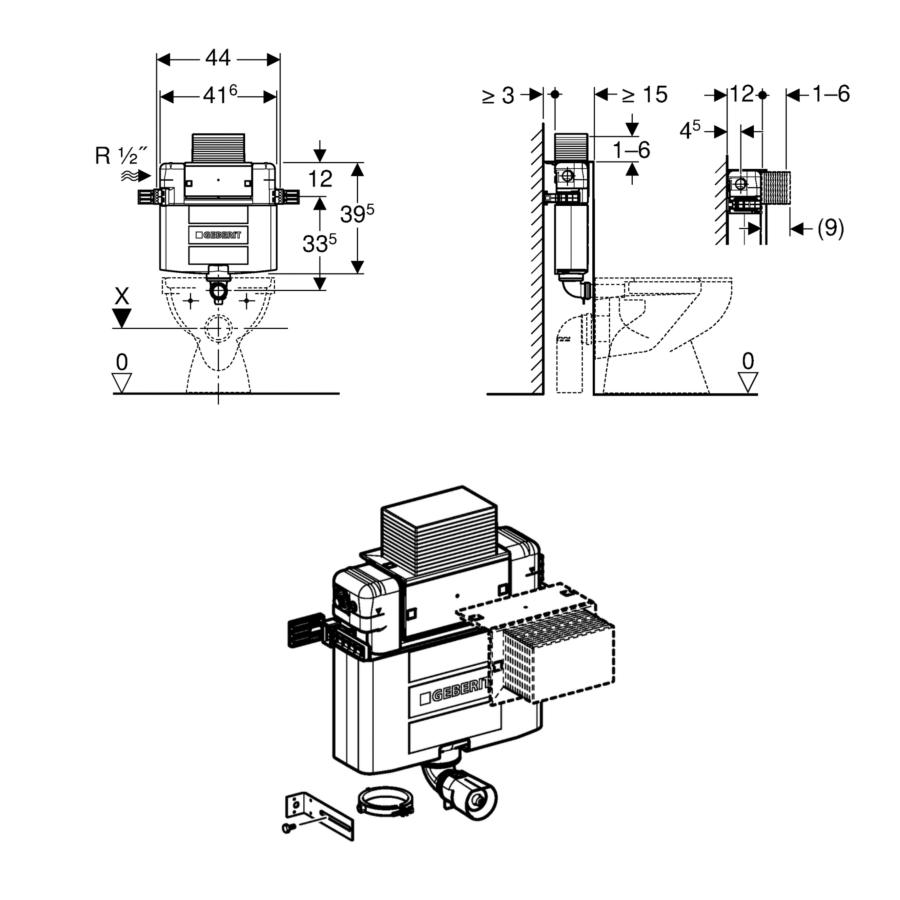

    Technical Specifications:
    • Installation Height: 82cm
    • Width: 44cm
    • Depth: 12cm


    Application Purposes:
    • For part height installations
    • For floor-standing back-to-wall WCs in accordance with EN 33:2011

    Features:
    • WRAS approved
    • Cistern fully insulated against condensation
    • Cistern fulfils standard requirements in accordance with EN 14055, Class II
    • Dual flush front or top actuation
    • Water supply connection on the rear or left
    • Welded flush bend

    Technical Data:
    • Flush volume, factory setting 5.8 l/3l
    • Flush volume small, adjustment range 3–4l

    What’s Included:
    • Water supply connection unit R 1/2", with integrated angle stop valve and adapter ring
    • Protection box for service opening
    • 2 fixing brackets
    • Flush bend extension, ψ45mm
    • Fastening and protection materials
    • Protection plug

  2. Features of Geberit Alpha 82cmH Concealed Cistern 109.002.00.1:

    ✔ WRAS approved
    ✔ Cistern fully insulated against condensation
    ✔ Cistern fulfils standard requirements in accordance with EN 14055, Class II
    ✔ Dual flush front or top actuation
    ✔ Water supply connection on the rear or left
    ✔ Welded flush bend
    ✔

  3.
  4. To find out more details about the product. Have a look at the following product spreadsheet.
