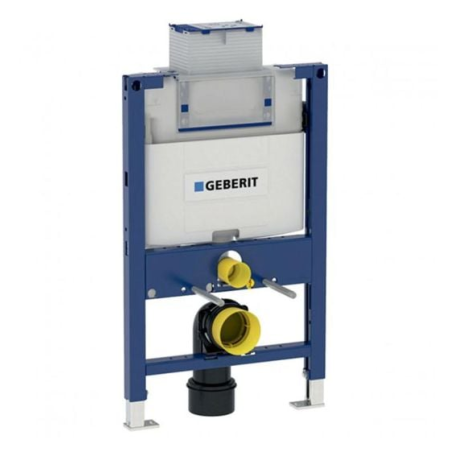

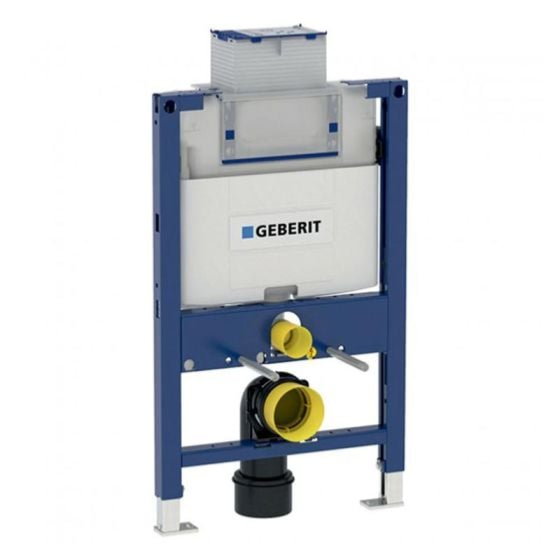

Geberit Duofix WC Frame, for Wall Hung Pans For Omega Cistern 111.004.00.1
Geberit Duofix WC Frame, for Wall Hung Pans For Omega Cistern 111.004.00.1Geberit Duofix WC Frame, for Wall Hung Pans For Omega Cistern 111.004.00.1Geberit Duofix WC Frame, for Wall Hung Pans For Omega Cistern 111.004.00.1

Geberit Duofix WC Frame, for Wall Hung Pans For Omega Cistern 111.004.00.1

(Code: CC00383)
Geberit
Geberit wall-hung systems are installed behind the wall, giving your bathroom more space and a simple, sleek design.
£ 279.00
0g
-+
Add to cart
@import url(https://fonts.googleapis.com/css?family=Lato:100,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }
PAYPAL CREDIT
Finance options available
EXPRESS DELIVERY*
Order before 1pm
FREE DELIVERY
On orders over £10*
RATED EXCELLENT
Read reviews

  1. Description of Geberit Duofix WC Frame, for Wall Hung Pans For Omega Cistern 111.004.00.1:

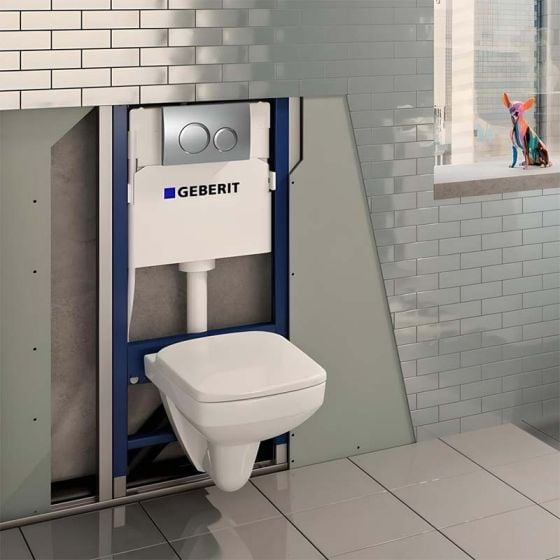

    Geberit wall-hung systems are installed behind the wall, giving your bathroom more space and a simple, sleek design. The system consists of an installation frame that integrates the cistern in the wall so that it saves space, and a flush plate.

    Application:
    • For drywall construction
    • For installation in part-height pre-wall installations
    • For installation in part-height Geberit Duofix system walls
    • For wall-hung WCs with connection dimensions in accordance with EN 33:2011
    • For wall-hung WCs with projection up to 62 cm
    • For dual flush
    • For floor constructions 0-20 cm

    What's Included:
    • 1x Geberit WC Frame 1120mm
    • 1x Geberit Alpha 6/3L Concealed Cistern for Wall Mounted Pans - 120mm
    • 1x Geberit Alpha01 Square Flush Plate - Chrome

    Key Features
    • Power coated self-supporting frame & Galvanized feet
    • Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
    • Non-slip leg supports & rotatable foot plates
    • Fastening for connection bend, sound-absorbing
    • Concealed cistern with top or front actuation
    • Concealed cistern fully insulated against condensation
    • Immediate post flush possible with factory setting
    • Tool-free installation and maintenance work on concealed cistern
    • Water supply connection on the left or rear left
    • Protection cover box for service opening protects against moisture and dirt
    • Protection box for service opening can be cut to length
    • Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
    • With fastening option for electrical connection

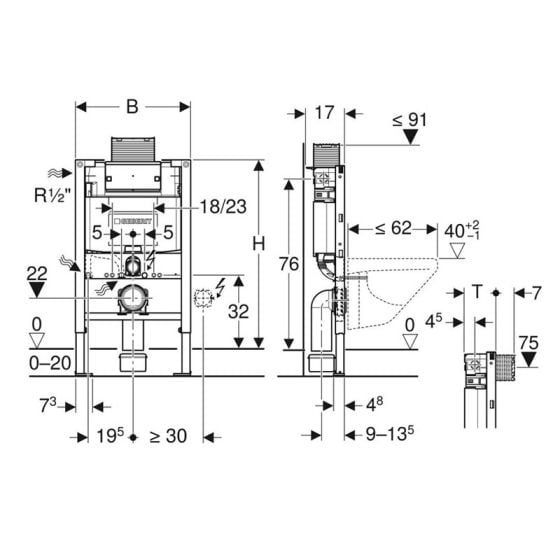

    Specifications
    • Frame with 9mm drilling holes for fastening in wood frame construction
    • Feet adjustable 20 cm
    • Connection bend can be mounted without tools at different depths, adjustable range 45 mm
    • Cistern fulfils standard requirements in accordance with EN 14055, Class II
    • Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails

  2. Features of Geberit Duofix WC Frame, for Wall Hung Pans For Omega Cistern 111.004.00.1:

    ✔ 1120mm frame height
    ✔ Geberit Alpha concealed cistern included
    ✔ Statically self-supporting frame
    ✔ Supports projections up to 620mm
    ✔ Alternative fastening point for wall anchors
    ✔ Designed for wall-hung WCs
    ✔ 10 year guarantee
