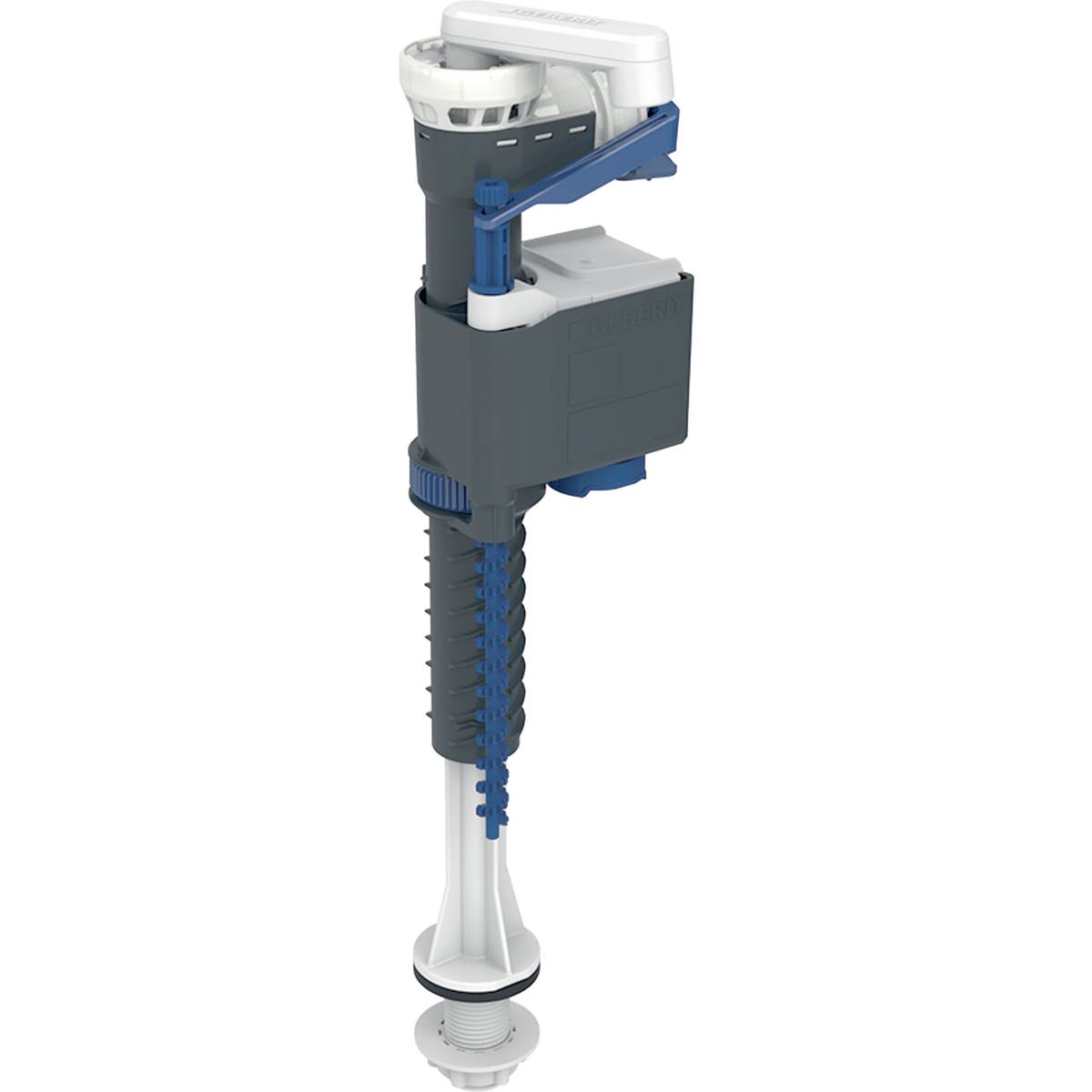

Geberit Type 323AG Bottom Entry Fill Valve with Plastic Nipple 1/2" 136.760.00.1
Geberit Type 323AG Bottom Entry Fill Valve with Plastic Nipple 1/2" 136.760.00.1Geberit Type 323AG Bottom Entry Fill Valve with Plastic Nipple 1/2" 136.760.00.1Geberit Type 323AG Bottom Entry Fill Valve with Plastic Nipple 1/2" 136.760.00.1Geberit Type 323AG Bottom Entry Fill Valve with Plastic Nipple 1/2" 136.760.00.1

Geberit Type 323AG Bottom Entry Fill Valve with Plastic Nipple 1/2" 136.760.00.1

(Code: 136.761.00.1)
Geberit
This component is designed for use with Geberit exposed cisterns featuring a bottom water supply connection, as well as ceramic cisterns and low-height concealed Geberit cisterns.
£ 22.95
0g
-+
Add to cart
@import url(https://fonts.googleapis.com/css?family=Lato:100,400); #the-final-countdown { background: #333; font-family: 'Lato', sans-serif; text-align: center; color: #eee; text-shadow: 1px 1px 5px black; padding: 1rem 0; font-size: 3rem; border: 1px solid #000; }
PAYPAL CREDIT
Finance options available
EXPRESS DELIVERY*
Order before 1pm
FREE DELIVERY
On orders over £10*
RATED EXCELLENT
Read reviews

  1. Description of Geberit Type 323AG Bottom Entry Fill Valve with Plastic Nipple 1/2" 136.760.00.1:



    APPLICATION PURPOSES
    • For Geberit exposed cisterns with bottom water supply connection
    • For ceramic cisterns
    • For Geberit low-height concealed cisterns
    • For greywater (rainwater) with pH value 6.0–9.5, if a filter system is used
    • For potable water
    • For water supply connections 1/2''

    CHARACTERISTICS
    • Adjustable filling height
    • Water supply connection on the bottom
    • Threaded nipple made of plastic
    • Backflow prevention type AG (free outlet with overflow)
    • Fulfils requirements in accordance with BS 1212-4:2016, WRAS Section 2075

    TECHNICAL DATA
    • Flow pressure 0.1–10 bar
    • Storage temperature ≤ 40 °C
    • Water temperature max. 25 °C
    • Durchfluss bei 50 kPa / 0.5 bar 0.06 l/s
    • Durchfluss bei 300 kPa / 3 bar 0.17 l/s
    • Minimum flow pressure 0.1 bar

  2. Features of Geberit Type 323AG Bottom Entry Fill Valve with Plastic Nipple 1/2" 136.760.00.1:

    ✔ Bottom Water Connection: Connects to the water supply from the bottom of the cistern.
    ✔ Plastic Nipple: Includes a plastic threaded nipple for durability.
    ✔ Adjustable Filling Height: Allows for customization of the water level.
    ✔ Delay Fill Function: Can be activated to fill the cistern only after the flush valve closes, saving water.
    ✔ Quiet Operation: Engineered for smooth and quiet refilling.
    ✔ Backflow Prevention (Type AG): Ensures safety with a free outlet and overflow protection.
    ✔ Wide Compatibility: Fits most common close-coupled ceramic cisterns from various manufacturers.
